Awning Box with 50 mm Top Tray - 1180 mm Plywood
Awning Box with 50 mm Top Tray - 1180 mm Plywood

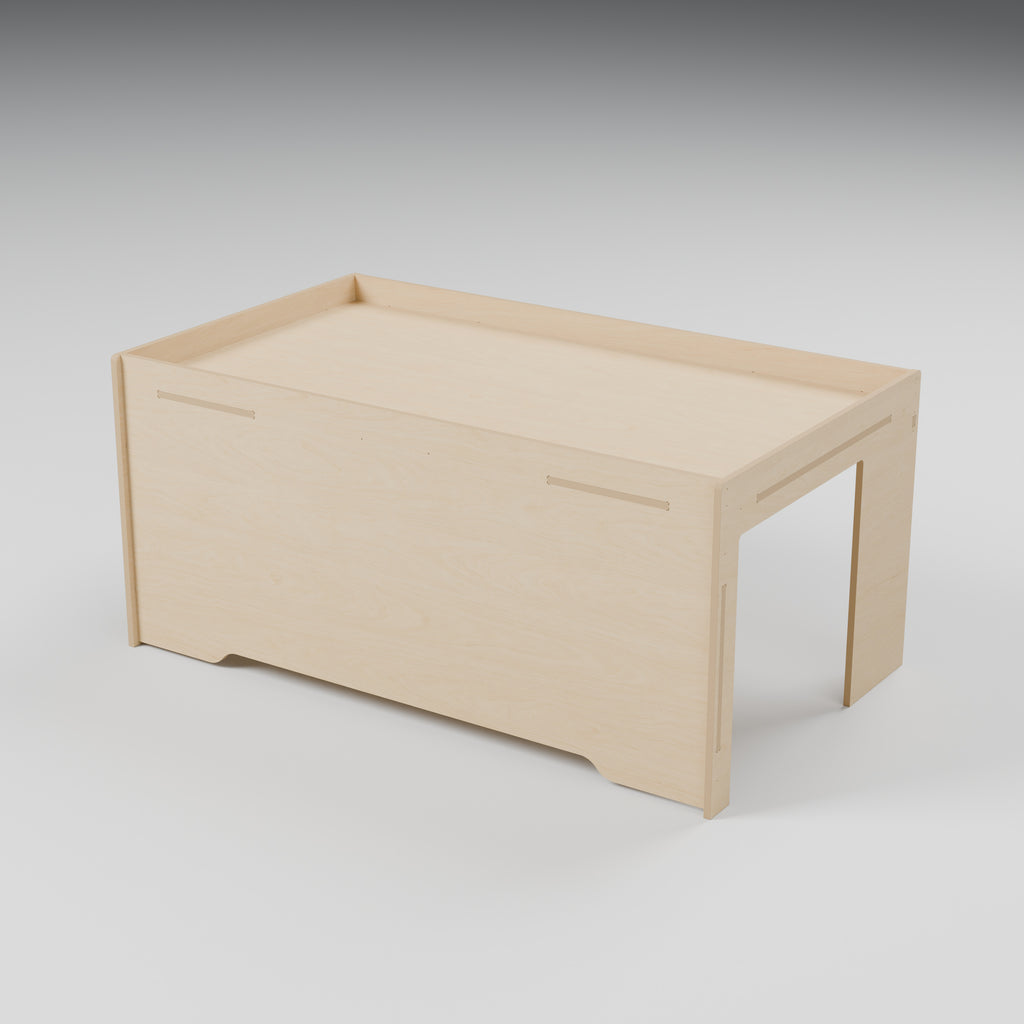

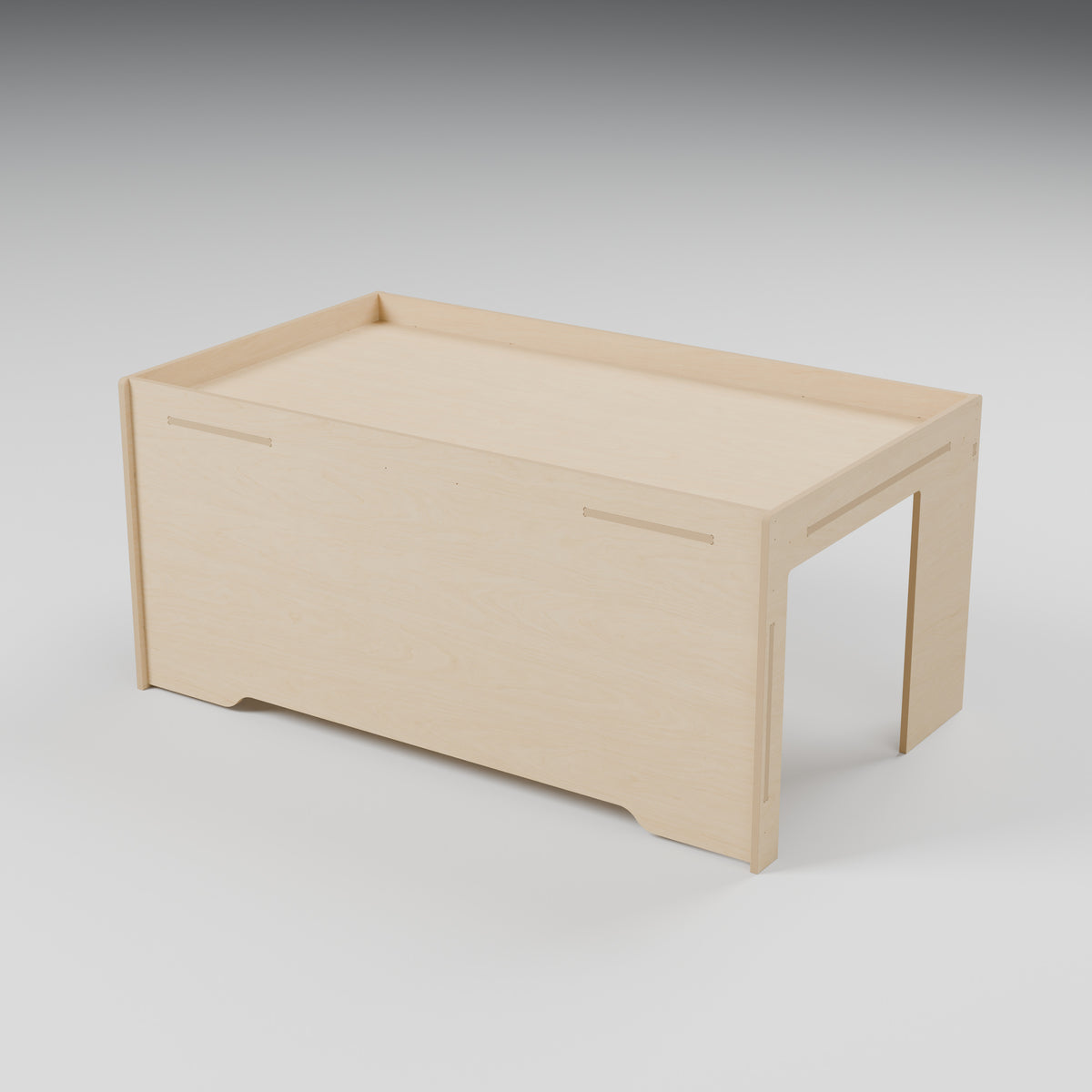

A broad top tray and open storage below, made from natural plywood. This Awning Box combines a 50 mm retaining lip around all four top edges with a solid front panel and an open rear.
Room for your kit
- Overall size: 1180 mm wide x 690 mm deep x 538 mm high.
- 12 mm natural plywood, unfinished, with visible layered edges.

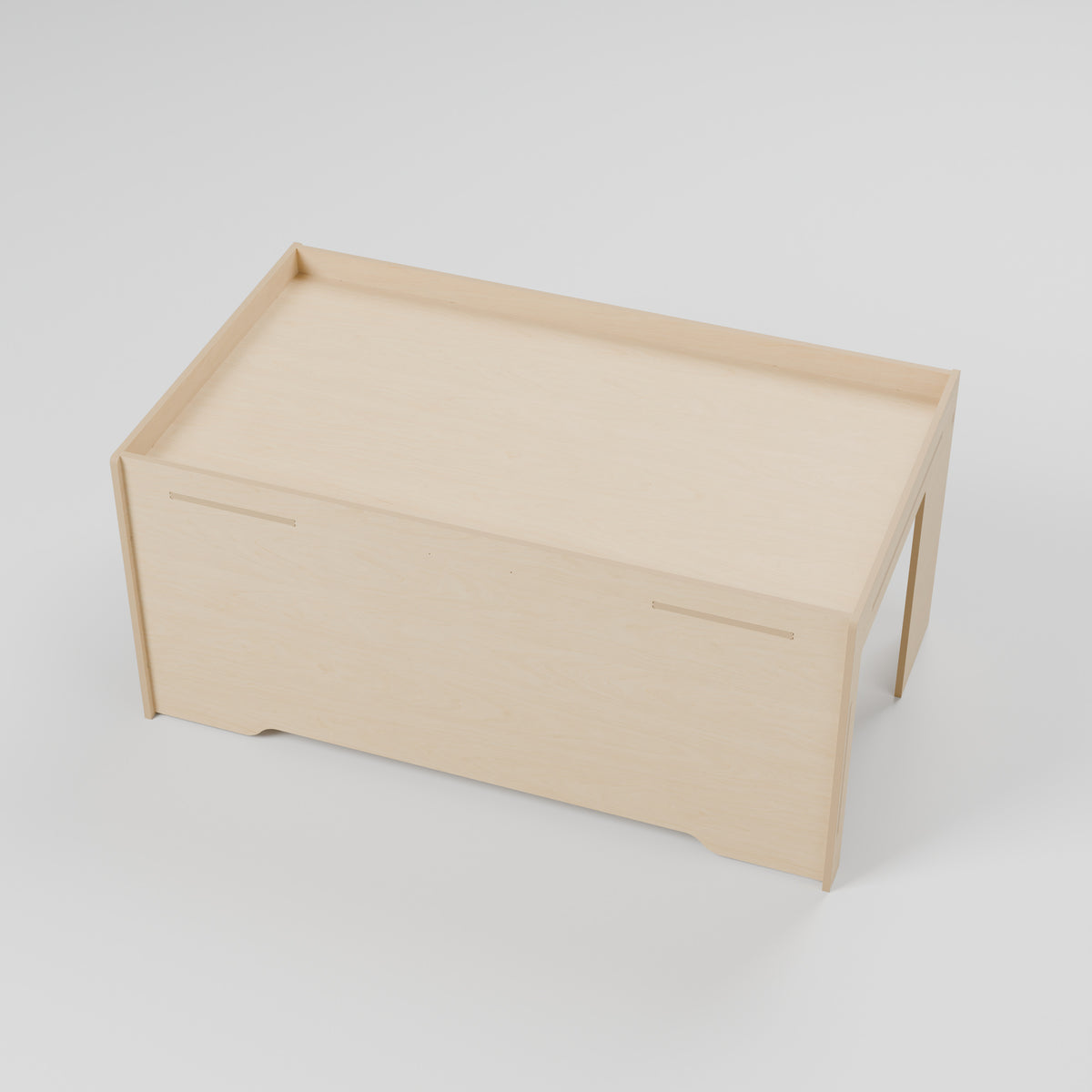

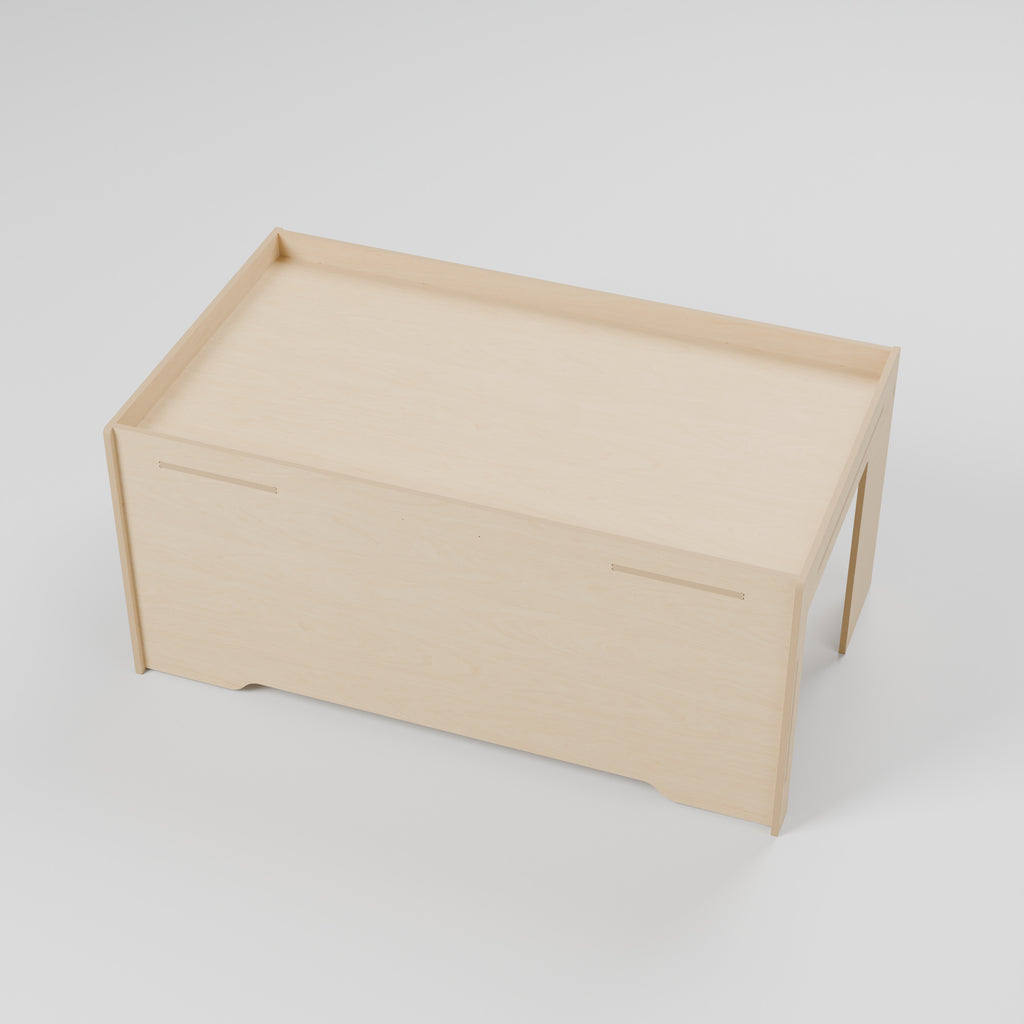

- Clear top tray: 1156 mm wide x 642 mm deep.
- 50 mm lip above the tray floor on every side.
- Tray floor height: 488 mm above ground.

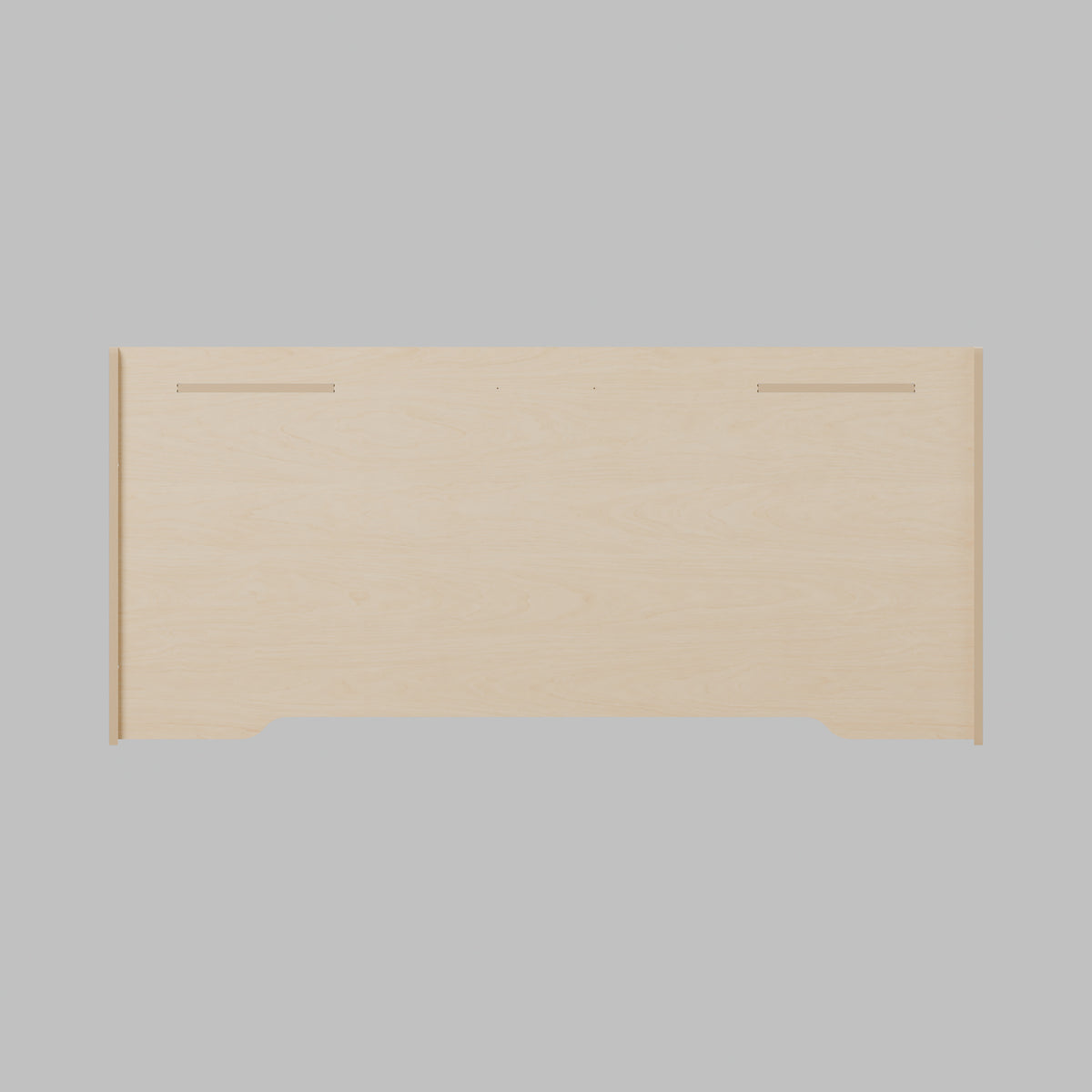

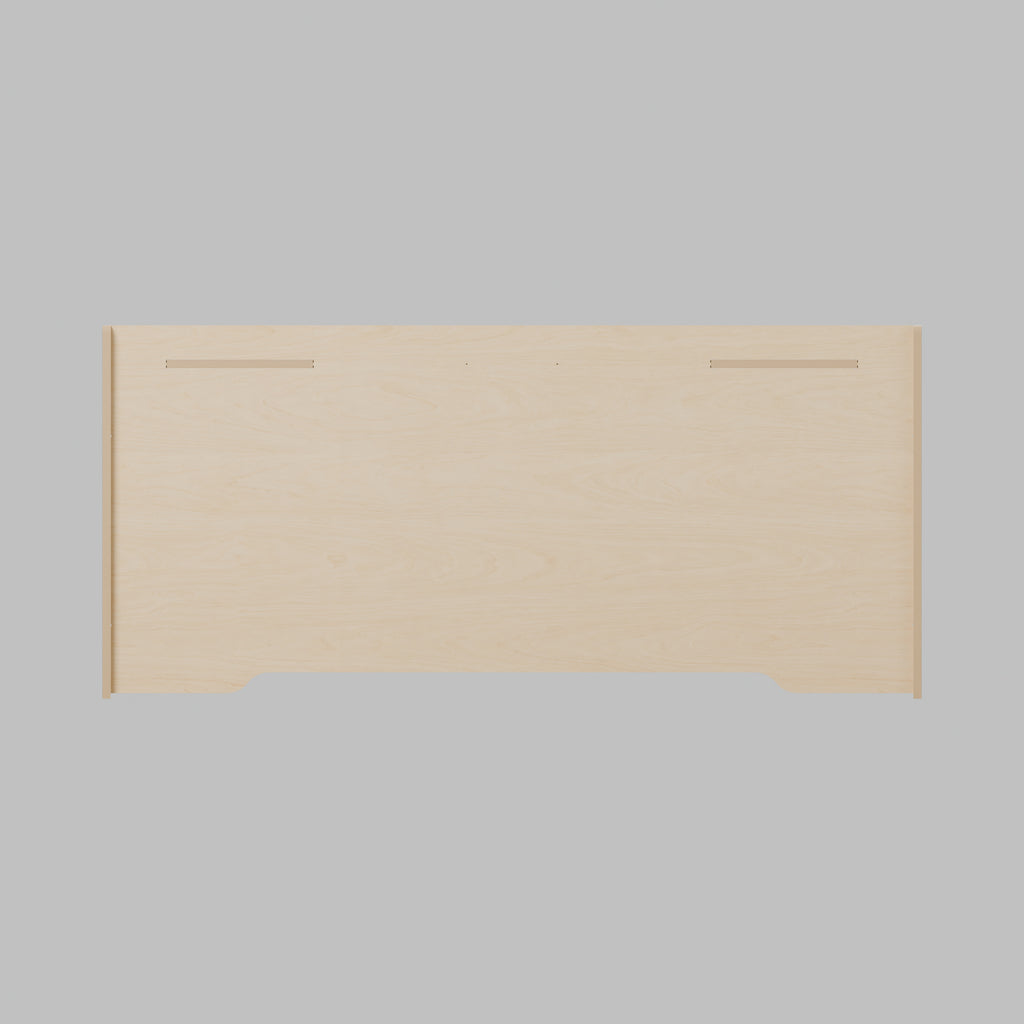

- Solid front panel without an access cutout.
- Original-size side arches: 420 mm wide x 440 mm high, with rounded internal corners. The additional rear depth is solid behind each arch.

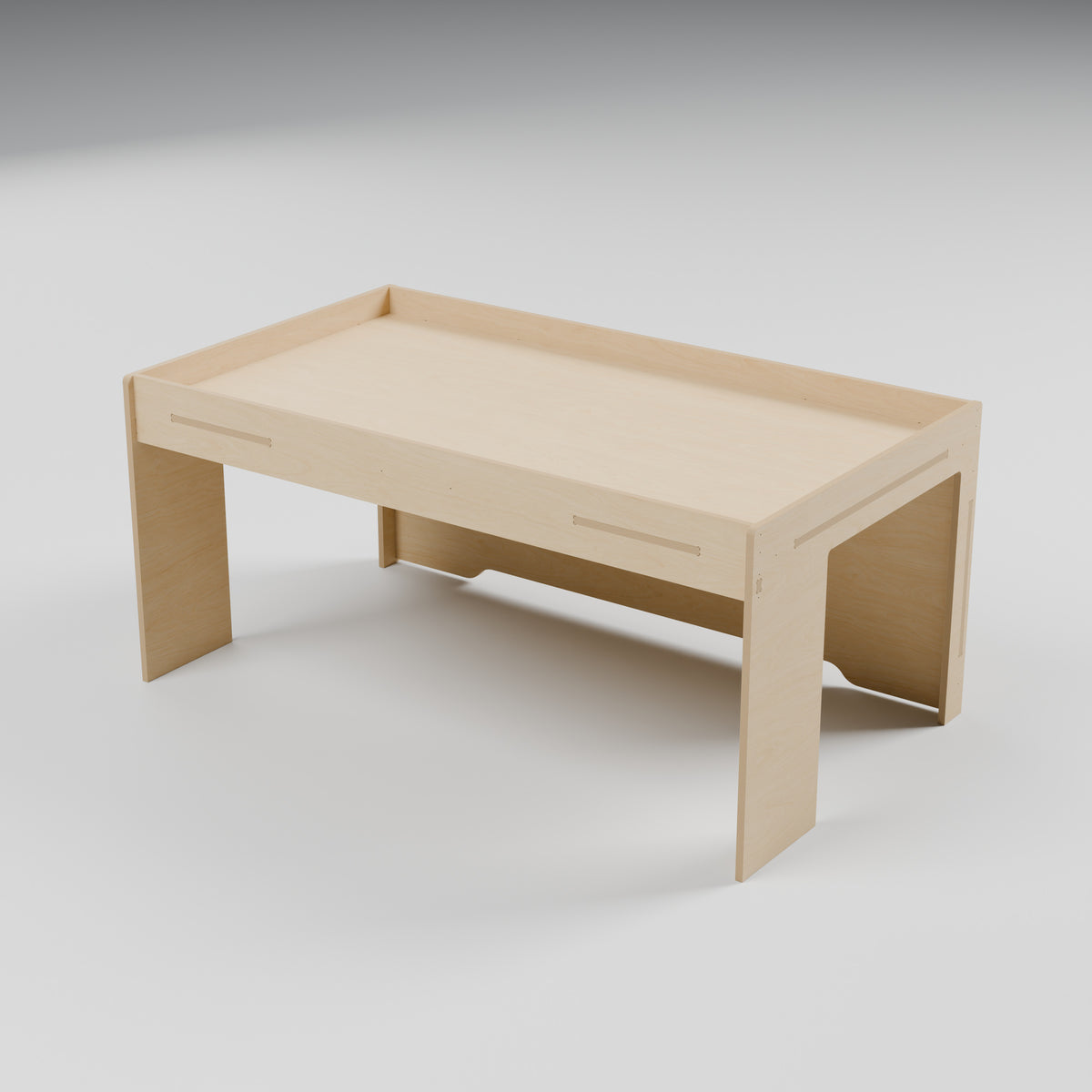

- Open rear and underside.

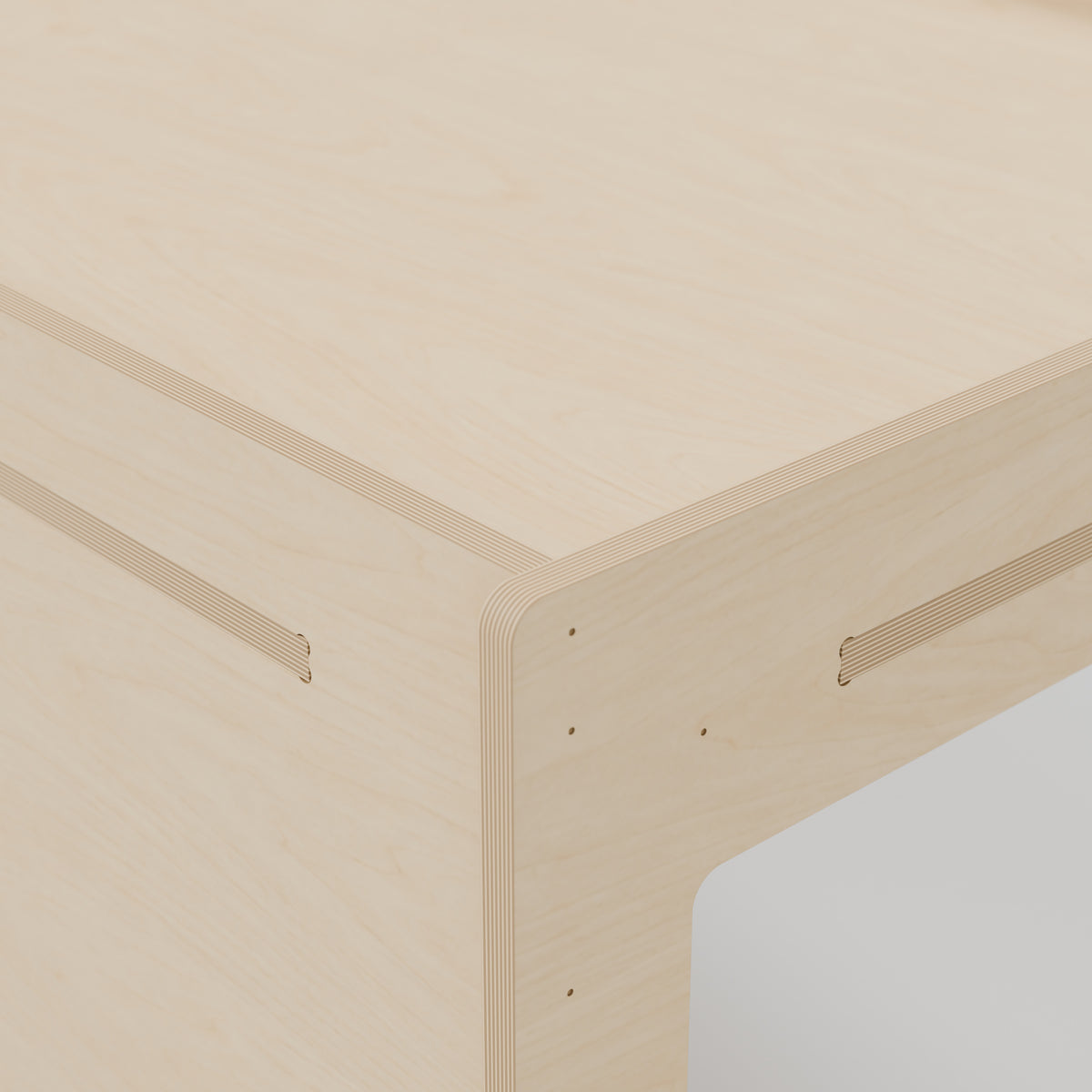

Interlocking construction, supplied flat pack
Five CNC-cut plywood panels slot together to form the frame and raised tray. Includes 32 x 3.5 x 30 mm assembly screws and an illustrated guide. Clamp the joints square and pre-drill with a 2 mm bit before fitting each screw.
Fitting and use
Check the overall dimensions and side openings against your equipment and installation space. Secure the box to suitable structural mounting points before use. Vehicle mounting fittings and stored contents are separate. Secure equipment for travel; the raised lip does not lock loose contents in place.
Images are renders of the current cutting model; natural grain varies. Supplied flat pack for self-assembly.
Downloads
Fit check Make sure it fits before you order Guide
- Measure the usable side-wall width. Check clear space from the bulkhead area towards the rear doors, allowing for trim, tie-down points and any existing lining.
- Measure available height from the van floor. Make sure the selected height clears roof ribs, windows, handles and anything mounted on the side wall.
- Check the depth works in your layout. Confirm it will not clash with doors, tools, wheel arch position or the space you need down the centre of the van.
